Soybean Oil Flow Meter 50 m³/h: Bulk Custody Transfer Invoicing Efficiency Rules
Quick Answer: A soybean oil custody transfer meter at 50 m³/h must meet OIML R117 or national metrology standards. For bulk invoicing accuracy, a positive displacement oval gear flow meter or a Coriolis mass flow meter with temperature compensation is the standard choice. Silver Automation Instruments supplies both types with 0.2 % repeatability, direct mass output, and optional MID/OIML certification for tax-compliant invoices.
Why soybean oil custody transfer has almost zero tolerance for error
Bulk soybean oil moves in tank trucks, railcars, and ship lines. At 50 m³/h, a measurement bias of just 0.5 % means 250 litres per hour vanish from the invoice. In a single 30-tonne road tanker delivery, that is an invoicing difference of 150 litres. Plant managers in Southeast Asia and Africa see this hit their P&L every month when they rely on turbine meters without temperature correction.
Here is the thing: soybean oil density changes with temperature. A shift from 25 °C to 35 °C can change the volume by roughly 0.7 % to 0.8 %. If your meter only reads volume at line temperature and the invoice is based on standard volume at 15 °C, your fiscal exposure is baked in before the truck leaves the gate.
Engineers in edible oil refineries now treat the flow meter as a billing instrument, not just a process sensor. The difference is legal traceability.
The four rules that make a 50 m³/h soybean oil meter invoice-ready
Rule 1, the meter must output net mass or volume corrected to 15 °C. A Coriolis meter solves this natively. It measures mass directly and calculates net volume via a built-in API table for soybean oil. An oval gear meter with a PT100 and a flow computer does the same job for a lower upfront cost. Both paths are accepted under OIML R117.
Rule 2, the meter needs a valid type approval certificate for edible oil. In Vietnam, that means a local Directorate for Standards, Metrology and Quality stamp. In Nigeria, it means a Weights and Measures attestation. Without it, tax invoices can be rejected during an audit. Silver Instruments provides meter models pre-approved for fiscal use in Malaysia, Indonesia, and several LatAm countries.
Rule 3, air elimination is mandatory. Soybean oil tanks often contain foam or entrained air after loading. A 2 % air pocket passing through a volumetric meter creates a 2 % invoicing error. Install an air eliminator upstream. Pair it with a meter that has a pulse output and a batch controller that halts the run when air is detected. This is standard practice in a 50 m³/h loading skid.
Rule 4, the invoice ticket must capture meter serial number, timestamp, start-end totals, and an unalterable transaction ID. This is where a flow computer or a custody transfer-approved transmitter (model RFT9739 style or a modern version) comes in. It locks calibration parameters and prints a tamper-evident ticket. In practice, most new installations use a Coriolis transmitter with custody transfer firmware, or an oval gear meter wired to a SIL-2 batch controller.
Oval gear or Coriolis: the real choice at 50 m³/h
For soybean oil with viscosity between 30 cP and 70 cP at loading temperature, an oval gear flow meter is hard to beat on cost and simplicity. At 50 m³/h, a DN80 oval gear meter with PPS gears and 316L bearings works reliably for years, provided the oil is filtered to 200 microns. It outputs a frequency signal directly proportional to volume. Add a PT100 and a flow computer, and you get standard volume invoicing at half the price of a Coriolis.
But here comes the trade-off. An oval gear meter needs annual recalibration if it is used for custody transfer. In a remote palm oil mill in Sumatra, sending the meter back to a lab is a logistics headache. That is where a Coriolis meter wins. A DN50 or DN65 Coriol

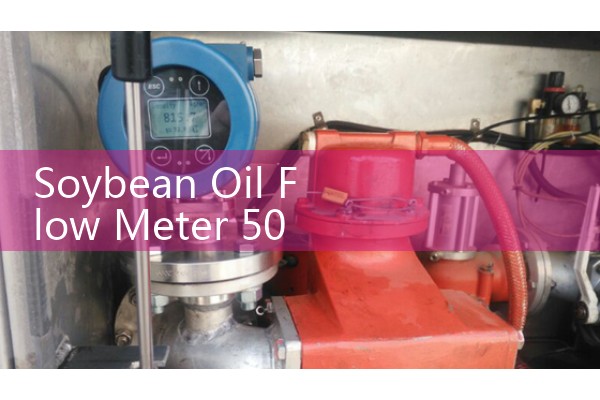

_600x400.jpg)
Silver Instruments suggests the SLW series oval gear flow meter (DN80, 4-20 mA + pulse, PT100 pocket) for budget-conscious terminals, or the SCF series Coriolis mass flow meter (DN50, 316L wetted parts, ATEX Zone 1 or non-Ex) for plants that want set-and-forget accuracy.
What a 50 m³/h soybean oil meter skid looks like in real life
A typical custody transfer skid at a Brazilian soybean oil terminal includes a strainer, an air eliminator, the flow meter, a PT100, a flow computer, and a control valve. The flow computer handles API 2540 corrections for soybean oil. The whole skid is tested against a master meter prover before shipment. One such skid delivered to a customer in Paraná last year clocks 50 m³/h ±1 % with a repeatability of 0.05 % across batch sizes from 5 000 to 30 000 litres.
That level of repeatability is what wins approval from independent surveyors during loading. When the ship inspector sees 30 000 litres on the truck meter and 29 980 on the ship’s radar gauge, the difference is within the 0.1 % pass band. The paperwork moves. The vessel sails on time.
How temperature compensation stops a USD 1 200 loss per truck
Let us put numbers behind this. A 30-tonne soybean oil truck at 35 °C has a line volume of about 32 800 litres. At the standard 15 °C, the net volume is around 32 400 litres. If the invoice uses uncorrected volume, the seller gives away 400 litres of oil per truck. At a bulk price of USD 3 per litre, that is USD 1 200 per load. For a terminal moving 20 trucks a day, the loss exceeds USD 8 million a year.
A Coriolis meter with built-in net oil calculation, or an oval gear meter plus a temperature-compensated batch controller, prevents this entirely. The flow computer uses the soybean oil density table stored in its memory. The invoice prints the net volume at 15 °C. Both buyer and seller see the same corrected number. Disputes vanish.
FAQ
Which flow meter technology is most common for soybean oil custody transfer at 50 m³/h?
Positive displacement oval gear meters and Coriolis mass flow meters dominate. Oval gear is more cost-sensitive. Coriolis is preferred for maintenance-free operation and direct mass output.
Do I need OIML or MID certification for the meter?
Yes, for fiscal invoicing. In many Asian and African markets, OIML R117 or a local equivalent is required. Silver Instruments can supply meters with applicable type approvals for Vietnam, Indonesia, Nigeria, and Brazil.
Can I install the meter without an air eliminator?
Not for billing accuracy. Entrained air is the biggest hidden error source in edible oil loading. An air eliminator rated for 50 m³/h and 3 bar is standard in all custody transfer skids we build.
What is the typical accuracy and repeatability I should specify?
For billing, require ±0.2 % of reading or better, with repeatability ≤0.05 %. Both the SLW oval gear and SCF Coriolis meters from Silver Instruments meet this at 50 m³/h.
How do I request a quote for a 50 m³/h soybean oil meter?
Send us your oil temperature range, pipe size (DN), pressure (bar), and required certifications. Email [[email protected]] with the subject line "50 m3/h soybean oil custody meter". We will return a complete skid BOM and price within 24 hours.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range for a fixed quotation with lead time. Visit flow-meter.com.au or contact Silver Automation Instruments directly for an engineer-reviewed spec sheet.
