Electromagnetic Insertion Flow Meter: Hot Tap Adjustable Pipe Sensors
Quick Answer
An insertion electromagnetic flow meter with a hot tap assembly lets you add flow measurement on a live pipe. No need to drain, cut, or shut down production. The adjustable sensor stem covers diameters from DN200 to DN2000 with one model. This cuts hardware cost, installation time, and plant stoppage to nearly zero.
How a Hot Tap Adjustable Insertion Magmeter Works
A full bore magmeter forces you to weld flanges and isolate the line. A hot tap insertion meter slides through a ball valve mounted on a saddle or a welded boss. You drill the pipe under pressure, retract the drill, close the valve, then insert the sensor. The velocity sensing electrodes sit at a calculated point inside the pipe. The converter uses the known cross sectional area and an insertion factor to compute volumetric flow. The stem length adjusts from about 100 mm to 500 mm or more. This adjustability is why one sensor fits many pipe sizes. You simply dial in the correct insertion depth for each diameter.
Why Industrial Users Pick Hot Tap Insertion Flow Meters
Here is the thing. On large lines DN400 and above, inline magmeters become heavy and expensive. The insertion type weighs under 10 kg and costs a fraction of the price. Installation takes under two hours on a pressurized pipe. No heavy cranes, no pipe cutting, no drain down. In practice, most engineers skip the forklift. They just mount the valve, hot tap, and slide the probe in. The adjustable rod means one spare sensor covers multiple pipe sizes. We have seen water utilities stock just three probe lengths for an entire distribution network.
Industries That Rely on Hot Tap Insertion Magmeters
Water and wastewater treatment plants use them on raw water intakes and effluent lines. Seawater desalination plants in the Middle East measure brine and cooling water in DN900 and DN1200 pipes without stopping the plant. A paint manufacturer in Southeast Asia recently needed to monitor wastewater discharge from their cleaning process. We supplied a hot tap insertion magmeter with 316L electrodes for a DN250 pipe. The install crew finished in less than two hours while the line stayed full. Mining operations in Chile measure slurry water return loops. HVAC chilled water networks in Australia use adjustable insertion sensors to balance flow in DN500 mains. Cooling water circuits in African power stations also depend on hot tap meters because shutdown is simply not an option.
One Adjustable Sensor Covers Multiple Pipe Sizes
This matters for EPC contractors and maintenance teams. You buy one probe model and set the depth. A single sensor with a 400 mm adjustable range covers DN200 to DN1200. For larger diameters we supply extended stem versions reaching DN2000. Inventory shrinks, spare part cost drops, and training gets simpler. Most engineers skip the calculation part because the converter handles the profile. Just enter the inner diameter during confi

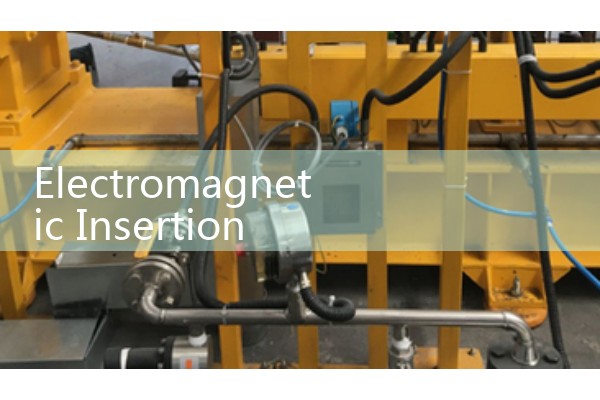

_600x400.jpg)
Technical Parameters That Matter in the Field
Accuracy lands at 0.5 percent of reading when the straight run requirement is met. Output options include 4 to 20 mA HART, pulse, and RS485 Modbus. Electrode materials range from 316L to Hastelloy C for aggressive fluids. The sensor body is often PTFE lined. Ingress protection reaches IP68 for submerged vault applications. The hot tap assembly handles pressures up to PN25. Temperature limits typically sit at minus 20 degrees Celsius to 80 degrees Celsius. Minimum liquid conductivity is 20 microsiemens per centimeter. The converter accepts 24 V DC or 220 V AC power. Local display shows instantaneous flow, totalized volume, and diagnostic codes.
Silver Instruments Insertion Magmeter Lineup
Silver Automation Instruments supplies the SILVER-EMI-H series hot tap insertion electromagnetic flowmeter. We configure each meter for your exact pipe ID, liner, electrode material, and output. Typical deliveries land within two to four weeks to Australia, Southeast Asia, the Middle East, Africa, and Latin America. Before you order, here is what we need. Send us your pressure in bar, temperature in degrees Celsius, pipe size in DN, and flow range. We will return a technical proposal and price within one working day. Reach us by email at [email protected] or call Tel +86-25-68650347. You can also message us on WhatsApp at +86-25-52155837 or WeChat +86 15365082610.
Frequently Asked Questions
Can we install an insertion magmeter on a pressurized water line without any shutdown?
Yes. The hot tap method uses a ball valve and a drilling machine. You drill the pipe under full pressure, retract the tool, close the valve, and insert the sensor. The media stays contained the entire time.
What pipe diameters does an adjustable sensor handle?
A standard adjustable probe covers DN200 to DN1200. With an extended stem we serve pipes up to DN2000. One sensor replaces many fixed length probes.
What liquid conductivity is required for the electromagnetic insertion flow meter?
The meter needs at least 20 microsiemens per centimeter. Tap water, wastewater, seawater, and most process water easily exceed this limit. Non conductive oils or solvents will not work.
How accurate is an insertion magmeter compared to an inline meter?
Under correct installation with straight pipe upstream and downstream, the accuracy reaches 0.5 percent of reading. Inline meters can achieve 0.2 percent, but the insertion type delivers enough precision for large line balancing, custody transfer of cooling water, and process control.
What maintenance does the sensor need under continuous operation?
The sensor has no moving parts. Electrodes may need occasional cleaning in fouling applications. The hot tap design allows you to retract the sensor under pressure for inspection without draining the line. This is a major advantage for water and wastewater plants.
