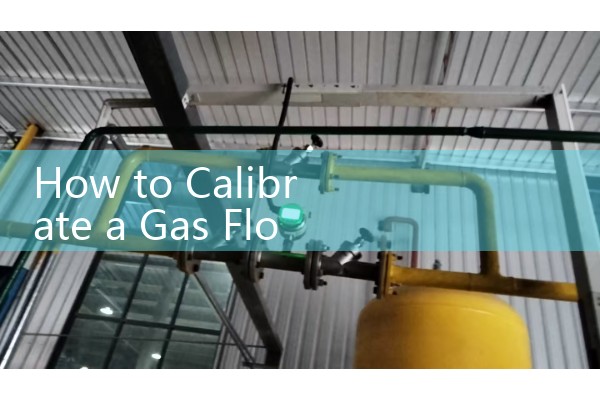

How to Calibrate a Gas Flow Meter: Piston Provers vs Reference Master Benches
Quick Answer: A piston prover is better for field calibration, low flow gas, small line sizes, and fast spot checks. A reference master bench is better for laboratory accuracy, wide flow range, large pipe sizes, and proving a master meter. Send your gas type, pressure, temperature, pipe size, and flow range to Silver Automation Instruments for a direct recommendation.
Gas flow meter calibration is not the same as liquid flow meter calibration. Gas is compressible. Temperature and pressure change the volume. That means the reference device and the meter under test must be compared at the same conditions. Many process plants in Southeast Asia, Africa, and the Middle East run gas lines at 2 to 40 bar. A small calibration error creates a large billing error or a process deviation.
Why Gas Flow Meter Calibration Needs a Clear Reference
In gas service, mass flow or standard volume matters more than actual volume. A vortex meter may read actual cubic meters. You need pressure and temperature compensation to get standard cubic meters. Calibration benches use air, nitrogen, or natural gas. Piston provers use a precision cylinder and a piston to push a known volume of gas through the meter. Master benches use a set of master meters, often Coriolis, ultrasonic, or turbine, as the reference. Both methods work. The choice depends on the application.
Here is the thing. Most engineers skip this part. The reference device and the meter under test must share the same temperature, pressure, and flow profile. If not, the calibration result is not valid. That is why a piston prover and a master bench have different use cases.
Piston Provers for Gas Flow Meter Calibration
A piston prover has a cylinder, a piston, and a timing system. The piston moves at a known speed. The displaced volume is exact. The flow rate equals volume divided by time. This method is direct. It works well for low flow rates from 0.01 to 200 standard liters per minute. High pressure versions can operate at 60 bar or more. We have seen piston provers used by a gas distributor in Vietnam for checking thermal mass flow meters on nitrogen lines. The unit fits in a van. It gives a traceable result in minutes.
Piston provers are popular for field audits. The footprint is small. The measurement time is short. They handle air, nitrogen, argon, and some natural gas blends. But the flow range is narrow. A DN100 gas line running 400 cubic meters per hour cannot be calibrated with a small piston prover. You would need a reference master bench.
Accuracy for piston provers can reach 0.05 percent of reading at low flow. In practice, most portable units offer 0.1 to 0.2 percent. Temperature influence needs correction. Piston seals need maintenance. A service company in Colombia uses a piston prover on biogas lines at 3 to 5 bar. The tool pays for itself because it avoids sending meters to an external lab.
Reference Master Benches for Gas Flow Meter Calibration
A reference master bench uses one or more master meters in parallel. The master meter can be a Coriolis mass flow meter, an ultrasonic flow meter, or a turbine meter. The meter under test is installed in series. Flow passes through both. The bench compares the readings over a set time. This method covers a wide range. A typical gas master bench can cover 0.5 to 4000 standard cubic meters per hour. Some large facilities go higher. Accuracy can be 0.15 to 0.3 percent depending on the master meter. Temperature and pressure sensors on the bench correct for gas density.
In practice, most calibration laboratories in Australia and the Middle East use a master bench for gas flow
If you compare piston provers and master benches, the main differences are flow range, portability, pressure rating, and cost. A piston prover is cheaper and easier to move. A master bench is more expensive but more flexible for plant-wide calibration. For a gas flow meter manufacturer, a master bench is the core reference. For a service company or a field technician, a piston prover is the practical tool.
Specific numbers help. A piston prover with a 1 liter cylinder can calibrate a thermal mass flow meter from 0.5 to 50 standard liters per minute. A master bench with a DN100 Coriolis master can calibrate a vortex meter from 10 to 1000 cubic meters per hour. If the meter is used for custody transfer of natural gas, choose a master bench with a NIST-traceable or ISO 17025 certificate. For a water treatment plant biogas line, a piston prover with a 10 bar rating may be enough.
How Silver Automation Instruments Helps You Choose
Silver Automation Instruments is a flow meter manufacturer and supplier for industrial users in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. We supply gas flow meters and help customers match the right calibration method. We supply vortex flow meters, thermal mass flow meters, and Coriolis mass flow meters for gas service. Most models are available with a factory calibration certificate. We also advise on installation, pressure compensation, and data output options such as 4-20 mA HART, RS485 Modbus, and pulse.
For example, a chemical plant in Indonesia needed a Coriolis mass flow meter for ethylene at 18 bar and 60 degrees Celsius. We supplied a DN25 Silver Instruments coriolis meter with factory calibration on a reference master bench. The plant later cross-checked the meter on site with a rental piston prover. The deviation was less than 0.2 percent. This is a typical result.
FAQ: Gas Flow Meter Calibration
Q: Which gas flow meter calibration method is more accurate?
A: Both can be accurate. Piston provers can reach 0.05 percent at low flow. Master benches typically reach 0.15 to 0.3 percent across a wider flow range. Accuracy depends on the reference device, pressure, temperature, and operator procedure.
Q: Can a piston prover calibrate a large natural gas flow meter?
A: No, piston provers are limited in flow volume. For DN80 and above or flow above 200 standard cubic meters per hour, a reference master bench is the better choice.
Q: What gas flow meter types do you recommend for industrial gas service?
A: For wet or dirty gas, a vortex flow meter works well. For low flow or gas mass measurement, a thermal mass flow meter is common. For high accuracy or changing gas composition, a Coriolis mass flow meter is the strongest option. Send process data and Silver Instruments will recommend a model.
Q: Does Silver Automation Instruments provide calibration certificates?
A: Yes, we provide factory calibration certificates for gas flow meters. We can also arrange third party calibration if your plant requires ISO 17025 documentation.
Q: What data do you need to quote a gas flow meter?
A: Send gas type, pressure in bar, temperature in degrees Celsius, pipe size in DN, flow range in kg/h or cubic meters per hour, and output signal. Our contact details are Tel: +86-25-68650347, Whatsapp: +86-25-52155837, WeChat: +86 15365082610.
