Akron Flow Meter: Sourcing Heavy-Duty Hydraulic and Fire Line Monitors
Quick Answer: Akron fire monitors and valves are common on fire water lines, but most installations still need a separate flow meter for pump testing and total discharge volume. Silver Automation Instruments supplies electromagnetic flow meters, oval gear flow meters and clamp-on ultrasonic meters for heavy-duty fire and hydraulic applications. Send your pipe size, pressure, temperature and flow range to get a matched model and price.
Fire trucks, deluge systems, offshore fire water pumps and fixed suppression systems often use Akron monitors for water or foam delivery. The monitor controls direction and throw. The flow meter gives the actual volume being moved. We see this on customer sites in Southeast Asia, the Middle East and Latin America. A fire pump test header with a DN150 pipe and 10 bar pressure may need a meter that reads 0 to 300 m3/h with an accuracy of 0.5 percent of reading. If the existing monitor is flanged, the flow meter should match the same flange standard and bolt pattern.
Key Specifications for Fire Line Flow Meters
For fire water line meters, start with pipe size and pressure. Common sizes are DN50, DN80, DN100, DN150, DN200 and DN250. Pressure ratings of PN10, PN16 and PN25 cover most fire pump discharge lines. Water temperature is usually 0 to 50 degrees Celsius. Output should be 4-20 mA HART or pulse. Many customers in fire pump skids want IP67 or IP68 body with optional ATEX Zone 1 if foam concentrate or fuel vapors are possible.

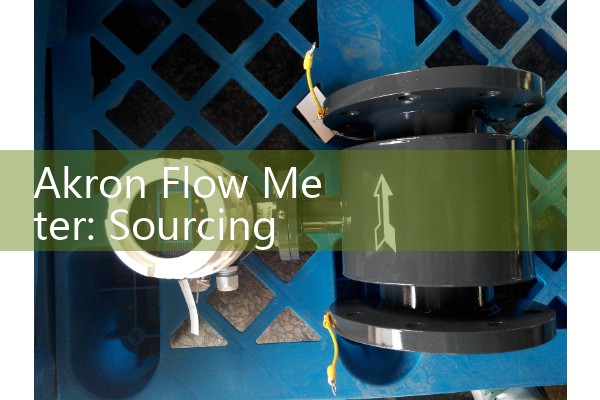

Our electromagnetic flow meters handle DN15 to DN2000 with PTFE or hard rubber liners and 316L electrodes. Pressure rating reaches PN40 depending on size. A DN100 fire water line running at 9 bar and 60 m3/h suits our electromagnetic meter with a PTFE liner. The output can be 4-20 mA HART plus a pulse for local totalizing. The meter works well for clean water and foam water mix because the liquid conductivity is normally above 5 µS/cm.
Hydraulic Oil Flow Measurement on Heavy Equipment
Here is the thing. Hydraulic lines are not the same as fire water lines. Pressure can reach 250 bar or 350 bar in mobile and industrial hydraulic power units. Viscosity changes with oil grade and temperature. An electromagnetic flow meter cannot measure non-conductive hydraulic oil. Use an oval gear flow meter or a turbine meter instead.
Silver Automation Instruments oval gear flow meters work on mineral oil, synthetic oil and light fuel oils with viscosity from 1 cP to 1000 cP. We have supplied a hydraulic press manufacturer in Vietnam with oval gear meters for ISO VG 46 oil at 120 bar and 100 litres per minute. The meter outputs pulse and 4-20 mA, and the display shows total litres and flow rate. Because hydraulic systems often have pressure spikes, install a pressure transmitter upstream. We can supply pressure transmitters with ranges up to 400 bar and 4-20 mA HART output.
Sourcing Akron Flow Meter Alternatives and Compatible Flow Instruments
Some buyers search for an Akron flow meter as a direct replacement. In practice, Akron fire monitors and valves are often separate from the flow metering device. If you need a monitor with integrated flow rate or a separate flow meter on the same line, specify the end connection and flange standard first. ANSI 150 or DIN PN16 flanges are common. Threaded connections may be NPT or BSP. We have seen customer sites in Malaysia with flanged ends. A plant in Nigeria used BSP threads on a similar fire water line. Always confirm thread or flange standard before shipping.
We can supply wafer and flanged electromagnetic meters with ANSI, DIN or JIS drilling. This avoids the cost of re-machining flanges on site. For retrofit jobs where pipe cutting is
Recommended Model Pairings
For fire water and foam water mix lines, use an electromagnetic flow meter with DN15 to DN2000 size, PTFE or hard rubber liner, 316L electrodes, 0.5 percent reading accuracy, 4-20 mA HART, pulse, RS485 optional, IP67 and optional ATEX Zone 1. Pressure rating is PN16 or PN25 for most fire pump discharge pipes.
For hydraulic oil and diesel flow, use an oval gear flow meter with DN4 to DN80 size, 316L body or aluminum body, flow range from 0.02 to 50 m3/h depending on size, pressure up to 350 bar and viscosity from 1 cP to 1000 cP. Output can be pulse or 4-20 mA with a local LCD totalizer.
For existing pipes where cutting is difficult, use a clamp-on ultrasonic flow meter on clean water lines from DN25 to DN300. Accuracy is about 1 percent of reading. This is a good fit for fire pump testing and building water balance checks.
Why Buyers Contact Us from Southeast Asia, the Middle East, Africa and Latin America
In practice, distributors want two things. First, a supplier that answers with accurate sizing instead of a generic quote. Second, documents that match tender requirements such as test reports, material certificates and origin documents. We ship from our factory with English manuals and calibration certificates. Because many fire line projects have urgent delivery, we keep common electromagnetic meter sizes in stock for DN50, DN80, DN100 and DN150.
Last year a fire pump skid builder in Indonesia ordered five DN100 electromagnetic flow meters for diesel pump discharge lines. They needed delivery within three weeks. The meters were shipped from stock and passed a third party inspection. Send us your pressure in bar, temperature in degrees Celsius, pipe size in DN and flow range in m3/h or litres per minute. If the line uses an Akron monitor flange, also send the flange standard and bolt pattern.
Contact Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. Website: flow-meter.com.au.
FAQ on Akron Flow Meter and Heavy-Duty Monitors
Does Silver Automation Instruments manufacture Akron brand monitors?
No. We supply flow meters and pressure transmitters that work on the same fire water and heavy-duty hydraulic lines. If you need an Akron monitor, confirm the original part number. If you need flow measurement on that line, we can match flanges and output signals.
What flow meter is best for a fire pump discharge line?
For clean water and foam water, an electromagnetic flow meter from DN50 to DN300 gives an accuracy around 0.5 percent of reading and has no moving parts. For a temporary test skid, a clamp-on ultrasonic meter can be installed without cutting the pipe.
Can an electromagnetic flow meter measure hydraulic oil?
No. Hydraulic oil is non-conductive. Use an oval gear flow meter or turbine meter. Confirm viscosity and maximum pressure before ordering.
What pressure rating do heavy-duty fire line flow meters need?
Most fire water lines operate at 8 to 16 bar. We supply PN16 and PN25 flanged meters as standard. For hydraulic oil, high pressure oval gear meters can be rated up to 350 bar depending on model and size.
What information do you need for a quote?
Send fluid type, pipe size in DN, flow range, pressure in bar, temperature in degrees Celsius and output signal. If the line uses an Akron monitor flange, also send the flange standard and bolt pattern.
