1. What are the classifications of electromagnetic flow meters? According to the measurement principle and structural characteristics of electromagnetic flow meters, different classifications can be made, including: Xiangdan 1 Electromagnetic induction electromagnetic flowmeter and liquid capacitive electromagnetic flowmeter: These are two common measurement principles of electromagnetic flowmeters. The working principle of an electromagnetic induction flowmeter is based on Faradays law of electromagnetic induction, which measures the flow rate by inducing the magnitude of the electromotive force in the measured medium through a magnetic field. The measurement principle of capacitive electromagnetic flowmeter is to use the capacitance change of the measured liquid between the electrodes to measure the liquid flow rate. 2. Insertion electromagnetic flowmeter and diameter electromagnetic flowmeter: Insertion electromagnetic flowmeter is easy to install and suitable for large-diameter flow measurement. The installation of diameter electromagnetic flow meters is relatively complicated, but the accuracy is relatively high. Full tube electromagnetic flow meters and split type electromagnetic flow meters: Full tube electromagnetic flow meters refer to flow meters that integrate sensors and converters, while split type electromagnetic flow meters separate sensors and converters for installation. Water supply and drainage electromagnetic flow meters and industrial electromagnetic flow meters: Water supply and drainage electromagnetic flow meters are suitable for the water supply and drainage industry, water treatment industry, and other fields, while industrial electromagnetic flow meters are suitable for industrial productio

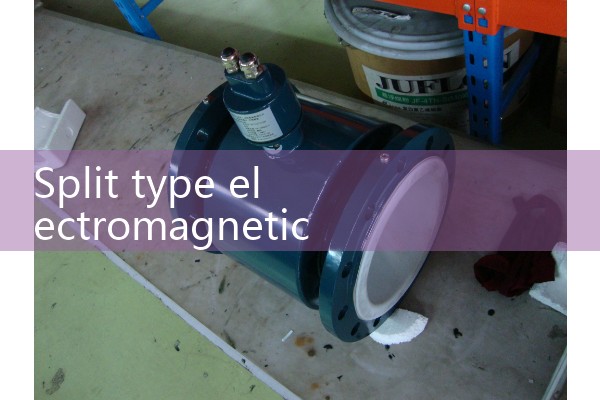

2. Detailed information of split type electromagnetic flowmeter
The measurement principle of split type electromagnetic flowmeter is based on Faradays law of electromagnetic induction. The split type electromagnetic flowmeter consists of a sensor and a dust converter. The sensor is installed on the measuring pipeline, and the converter is installed within 30 meters or 100 meters from the sensor, connected by a shielded cable.
. The main components of the split type electromagnetic flowmeter sensor are: measuring tube, electrode, excitation coil, iron core, and magnetic yoke housing. Mainly used to measure the volumetric flow rate of conductive liquids and slurries in closed pipelines. Such as water, sewage, mud, pulp, various acids, alkalis, salt solutions, food slurries, etc., are widely used in industries such as petroleum, chemical, metallurgical, textile, food, pharmaceutical, papermaking, as well as environmental protection, municipal management, water conservancy construction, etc. to measure high temperature, high humidity, and difficult to observe environments. 2. Product Features:1. Suitable for volumetric flow measurement of conductive fluids with conductivity greater than 5 ц s/cm
2. There are no moving or blocking parts inside the measuring tube, and the pressure loss is small
3. The lining and electrodes made of different materials have good anti-corrosion performance with good opening and closing
4. Not affected by media, density, viscosity, temperature, pressure, and conductivity
5. Low frequency rectangular wave excitation, not easily disturbed, stable and reliable
6. The converter has low energ
